| Brand: | Silver Swallow | Blender Type: | Planetary Mixer |
| Material Type: | Solid-Liquid | Applicable materials: | Paste Aluminium Paste |
| Power Type: | Electric | Layout form: | Vertical |
| Mixing method: | Forced agitation | Amount of processing per time: | 2-1000 |
| Application: | Chemicals | How to work: | Continuous operation |
| Drum Shape: | Drum type | Installation method: | Fixed |
| Motor Power: | 0.75-55 | Production Capacity: | 2-1000L |
| Speed Range: | 0-1440 | Barrel Capacity: | 4-1000 |
| Model: | SXJB | Specifications: | High Viscosity Mixer |
| Trademark: | Silver Swallow | Packaging: | Wooden crate or simple |
| Custom Service: | Customize on demand | After-sales service: | Lifetime After Sales |
| Yield: | 1000 |
Detailed introduction of "paste mixer, aluminum paste mixer, adhesive planetary defoaming mixer"
Overview:
Paste mixer and double planetary mixer are a new type of mixing equipment developed by innovation and improvement on the basis of digesting and absorbing domestic and foreign technologies. The equipment is composed of a low-speed stirrer and a high-speed disperser, which has good mixing, reaction, dispersion and dissolving functions, and is especially suitable for the dispersion and mixing of solid-liquid and liquid-liquid phase; due to its output torque, it is especially suitable for higher viscosity. Large products, such as adhesives, silica gel, lithium battery slurry, etc.; at the same time, the equipment has the function of scraping the wall and bottom, no dead angle, no residue; the lifting method adopts double-column hydraulic lifting, which has high stability.
Principle:

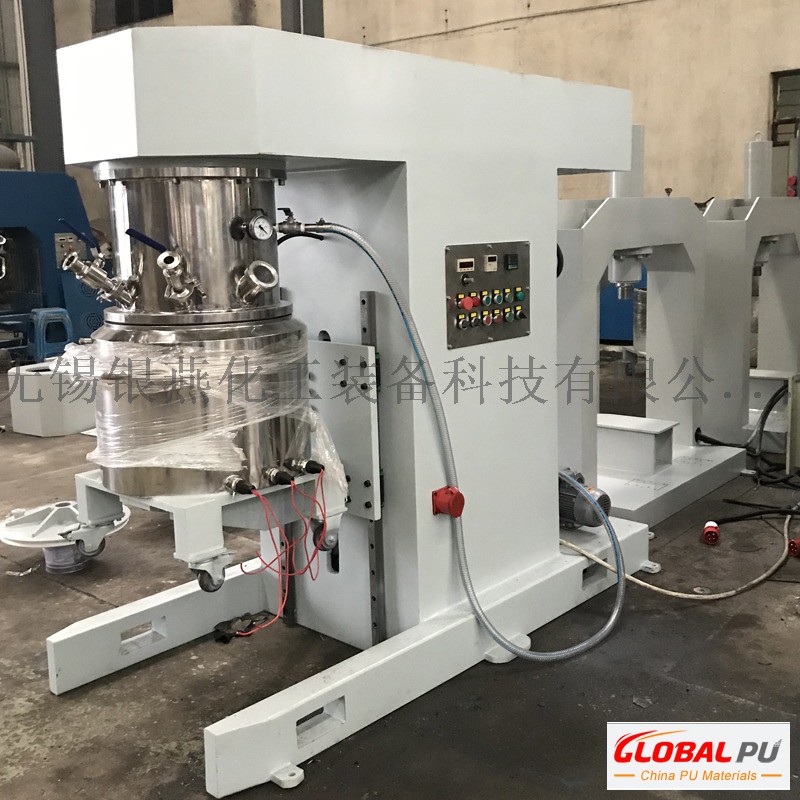

The double planetary vacuum mixer equipment is composed of a geared motor, a planetary carrier, a mixer, a wall scraper, a material bucket, a double-column hydraulic lifting system, and a rack. When the planet carrier rotates, it drives the stirring shaft and dispersing shaft (optional) in the box to revolve around the axis of the barrel and rotate at high speed, so that the material is subjected to strong shearing and kneading to achieve the purpose of fully dispersing and mixing; There is a scraper on the rack that rotates with the planet carrier, and keeps scraping close to the barrel wall. After the barrel wall is finished by a large vertical lathe, it is polished by a large automatic polishing machine to ensure that the movable scraper on the planet carrier rotates. The material on the barrel wall is completely scraped off, so that there is no residual material on the barrel wall, and the mixing effect is improved.
