| In stock: | No | Authentication: | 9001 |
| Brand: | Yuyi | Package Type: | Cans |
| How it works: | Atmospheric pressure | Material Type: | Paste |
| Applicable industries: | Daily Chemicals, Chemicals | Applicable to: | Juice drink, mineral water, purified water, glue |
| Number of filling heads: | 4 | Level of Automation: | Automatic |
| Power: | 3kw | Dimensions: | 1800*1200*800mm |
| Filling Volume: | 1t/h | Applicable bottle height: | 1-800mm |
| Applicable bottle diameter: | 1-400mm | Production Capacity: | 1t/h |
| Filling Accuracy: | 0.25% | After-sales service: | One year warranty |
| Model: | Agt | Specifications: | Agt-50L |
| Trademark: | Yuyi | Packaging: | Wooden Box |
| Yield: | 99999 |

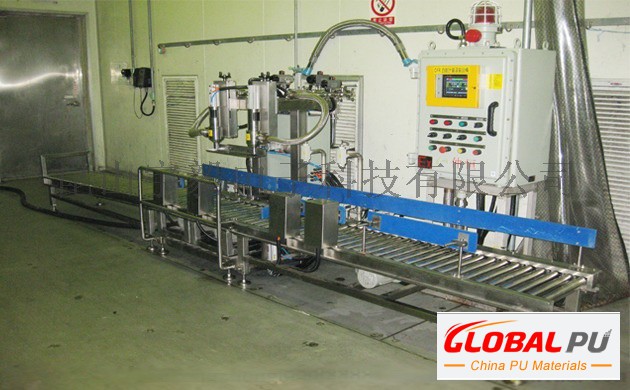

Detailed introduction of "polyether polyester automatic filling production line"
Product introduction:
Liquid filling machine is a kind of automatic packaging equipment, its main function is to transfer liquid materials Automatic filling to pre-set weights. The liquid filling machine can effectively avoid material overflow during the filling process, and prevent the material itself from polluting the environment to a large extent, thereby effectively protecting the operator from labor. The system works stably and reliably, with simple operation and accurate filling. 10kg automatic filling machine is mainly composed of filling device, PLC system control part, weighing system, filling rack, conveying equipment and so on.
Product Specifications:50L packaging drum quantitative filling
■Applicable materials:
It is suitable for filling liquid materials that are prone to foam.
■System description:
This filling line is customized according to the customer's production capacity and with the barrel machine carrier, fully automatic shunt conveying, positioning and metering filling, and eight stations to improve the filling efficiency. The following filling can suppress the generation of foam. The system has multiple protections such as bucket collision protection, empty bucket zero zone/tolerance protection, conveying line status monitoring protection, abnormal operation alarm, shutdown and other multiple protections, and Chinese alarm prompt information.
The main components of the equipment are Mitsubishi PLC (Japan factory), Japan OMRON relay, French Schneider switch, Taiwan DonGYU size ball valve group/
American actuator, AirTAC cylinder, Taiwan-made GSS full Chinese LCD screen
Basic parameters:
Power supply AC380/50Hz Filling accuracy ≤±0.1%< br> Use air source 0.5-0.7Mpa Filling speed 960 barrels/Hr (depending on material flow rate)
Weighing 50kg Filling material SUS304
Sensitivity 5g Operating temperature -10℃-50℃
Function selection Configuration:
Automatic palletizing/automatic labeling/other customized functions
■Model selection:
General explosion-proof type
■System features:
Chinese display: 7-inch full Chinese color LCD Screen, the whole process of Chinese fool-style guide operation;
No bucket on the weighing platform, no filling is prohibited, differential pressure zero-day collision protection against buckets, automatic peeling, foolproof, fault detection, etc., can realize
装及锁盖作业；
操作方便：可调式包装桶定位槽；系统自动侦测桶定位，自动启动灌装；灌高度
可调150mm，适用不同规格桶；
Function switching: net weight/gross weight, automatic/manual function switching mode;
Configure large and small ball valve groups and filling, large, small and micro three-stage filling design;
import configuration: Mitsubishi PLC (Japanese factory), Japan OMRON relay, France Schneider switch, Taiwan DonGYU size ball valve group/US-made
actuator, AirTAC cylinder, Taiwan-made GSS full Chinese LCD screen,
Explosion-proof protection: integral cast aluminum explosion-proof electric control box
